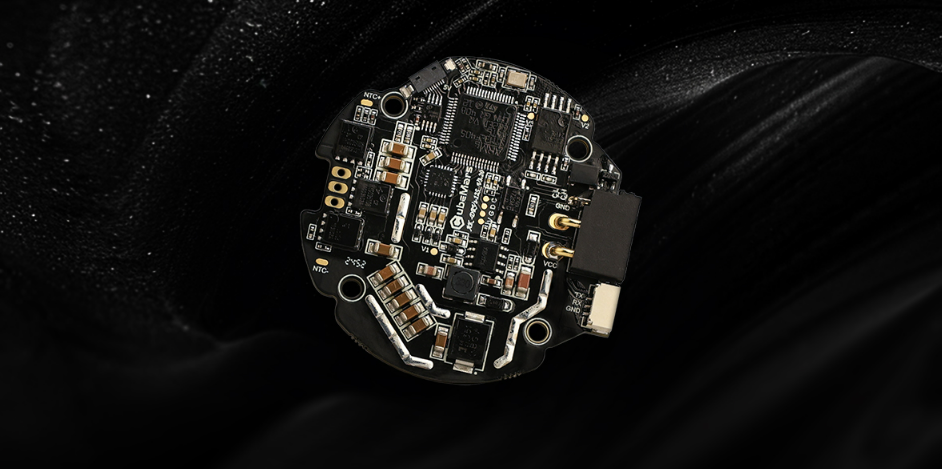

How Does the Driver Board Affect Robot Motor Performance and Efficiency?

With the rapid development of intelligent devices such as humanoid robots, quadruped robots, and robotic arms, robotic joint systems place higher demands on motor performance. In addition to the motor's own design, the driver board (Motor Driver Board), as the core component connecting the control system and the motor, directly affects the robot motor's output capability, motion precision, and overall efficiency.

Many robot developers focus on the motor's torque, speed, and reduction ratio, yet tend to overlook the important role of the driver board. In fact, a high-performance driver board can fully unleash the motor's potential, enabling more precise, stable, and efficient motion control.



What is a Robot Motor Driver Board?



The driver board serves as the bridge between the robot's control system and the motor, primarily responsible for:

• Receiving position, speed, and torque commands from the controller
• Converting low-power control signals into the high-current drive required by the motor
• Controlling the motor's operating status
• Monitoring parameters such as current, voltage, and temperature

Simply put:

The controller determines "what the motor should do," while the driver board determines "whether the motor can accurately complete the action."

In a robotic joint, the driver board typically works together with the following components:

• BLDC brushless motor
• Encoder
• Reducer
• MCU control chip
• Communication module

Together, they form a complete robot actuator system.



The Impact of the Driver Board on Robot Motor Performance



1. Affects the motor's torque output capability

One of the core factors for a motor to generate torque is current, and the driver board determines how much effective current the motor can receive.

Motor torque is generally proportional to current:

Higher and more stable current output → Greater effective torque.

If the driver board's performance is insufficient, the following issues may occur:

• Inability to reach peak current
• Torque drop under high loads
• Slower motor response
• Weak robot movements

For example, in the leg joints of a humanoid robot, actions such as walking and jumping require instantaneous output of large torque. If the driver board cannot provide sufficient current, even a high-performance motor will be unable to achieve its full capability.

Therefore, high-performance robot driver boards typically need to have:

• High current output capability
• Good thermal design
• Stable power control

2. Affects the robot's motion control precision

Robots require not just "movement," but precise movement.

The driver board achieves the following through motor current control and feedback signals:

• Position control
• Speed control
• Torque control

High-performance driver boards typically employ:

• FOC (Field Oriented Control)
• High-precision current sampling
• Real-time closed-loop control

Compared with traditional open-loop control, closed-loop drive can:

• Reduce motion errors
• Improve joint compliance
• Enhance robot stability

For example, collaborative robots need to interact safely with humans; their joints must be able to sense external force changes and quickly adjust output, which places higher demands on the driver board's control capability.



How Does the Drive Algorithm Affect Motor Efficiency?



Robot motor efficiency depends not only on the motor's structure but also on the drive algorithm.

FOC control improves energy utilization

Traditional PWM control methods tend to produce:

• Current fluctuations
• Motor noise
• Energy loss

In contrast, FOC control makes motor operation smoother by precisely controlling the magnetic field direction.

Advantages include:

• Reduced current loss
• Improved low-speed operation stability
• Reduced motor heating
• Improved overall efficiency

For robotic applications, especially in long-duration operation scenarios, high-efficiency drive can significantly enhance endurance.



Driver Board Thermal Dissipation Capability Determines Robot Reliability



Robot motors typically need to run for extended periods, and high-load operation generates substantial heat.

If the driver board has insufficient heat dissipation, it can lead to:

• Increased MOSFET temperature
• Reduced current output
• System protection shutdown
• Shortened service life

Excellent robot driver boards typically adopt:

1.High-performance power devices

For example, low-impedance MOSFETs can reduce:

• Conduction losses
• Heat generation

2.Optimized PCB layout

Proper design of:

• Current paths
• Copper layer thickness
• Heat dissipation areas

Can improve continuous operation capability.

3.Temperature monitoring protection

Real-time detection of:

• Motor temperature
• Driver chip temperature
• Current status

Prevents system damage.



The Relationship Between the Driver Board and Robot Response Speed



Robots need to respond quickly to environmental changes, such as:

• Humanoid robots maintaining balance
• Quadruped robots rapidly adjusting posture
• Industrial robots performing high-speed positioning

The driver board's response speed directly affects:

• Motor start-up time
• Torque change speed
• Control cycle

High-performance drive systems typically possess:

• Higher control frequency
• Lower communication latency
• Faster current response

This enables robotic joints to achieve more natural and smooth motion.



Driver Board Communication Methods Affect System Integration



Modern robot systems typically require multiple joints to work collaboratively, so the driver board's communication capability is very important.

Common communication methods include:



For multi-DOF robots, such as humanoid robots, a system may contain dozens of joints, so the driver board needs to support high-speed synchronous control.



Integrated Drive Solutions Become a Trend in Robotics Development



Traditional robot structures typically adopt:

Motor + Reducer + Encoder + External Driver

This approach has:

• Large volume
• Complex wiring
• High system integration difficulty

In recent years, more and more robots are adopting:

Integrated Actuators

Which integrate:

• Motor
• Reducer
• Encoder
• Driver board

Into a single module.

Advantages include:

Smaller size

Suitable for:

• Humanoid robots
• Exoskeleton robots
• Dexterous robotic arms

Higher reliability

Reduces:

• Connecting wires
• External interfaces
• Installation errors

Simpler development

Developers can directly control the joint through a communication interface.



How to Choose a Suitable Driver Board for a Robot?



When selecting a driver board, the following parameters should be given priority:

1. Maximum continuous current and peak current

Determines the joint's output capability.

2. Control method

Prioritize:

• FOC control
• Closed-loop control
• Torque control

3. Communication protocol

Choose according to the robot architecture:

• CAN
• EtherCAT
• RS485

4. Thermal dissipation capability

Pay attention to:

• Power devices
• PCB design
• Temperature protection

5. Size and weight

For mobile robots and humanoid robots:

Lightweight design is very important.



CubeMars Robot Drive Solutions



As robotic applications move toward high performance and miniaturization, CubeMars has introduced a series of integrated actuator solutions for robotic joint applications.

For example:

• AK Series Robot Actuators
• AKH Series High-Performance Actuators
• QDD AKE Series Quasi-Direct Drive Actuators

These products integrate:

• High-performance brushless motors
• High-precision encoders
• Intelligent drive systems
• Efficient control algorithms

Capable of meeting the needs of:

• Humanoid robots
• Quadruped robots
• Exoskeleton robots
• Industrial robotic arms

They provide power support for robotic applications requiring high response and high reliability.



Summary



The driver board is a key component affecting robot motor performance and efficiency. It is not only responsible for connecting the control system and the motor but also determines the motor's current output capability, response speed, control precision, and overall operational stability. Even if a high-performance motor is used, if the driver board cannot provide stable and efficient drive capability, it becomes difficult to fully realize the motor's torque output and dynamic performance.

In robotic applications, high-performance driver boards, through advanced control algorithms (such as FOC), precise current control, and real-time feedback mechanisms, can enhance the smoothness and control precision of motor operation. At the same time, optimized drive strategies can effectively reduce energy loss, minimize motor heating, and improve the overall efficiency and reliability of the robot system.

As humanoid robots, quadruped robots, and industrial robots continue to evolve toward lightweight and high-performance designs, drive systems are gradually shifting from traditional separate structures to integrated actuator solutions. By highly integrating the motor, encoder, reducer, and driver board, it is possible not only to reduce system volume and connection complexity but also to further enhance the response speed, reliability, and control capability of robotic joints.

In the future, robot driver boards will continue to develop toward higher power density, lower communication latency, and more intelligent control. Through the deep integration of motor technology, drive technology, and intelligent control algorithms, robots will achieve more precise, flexible, and natural motion, providing core power support for the development of humanoid robots, intelligent manufacturing, and automation equipment.
